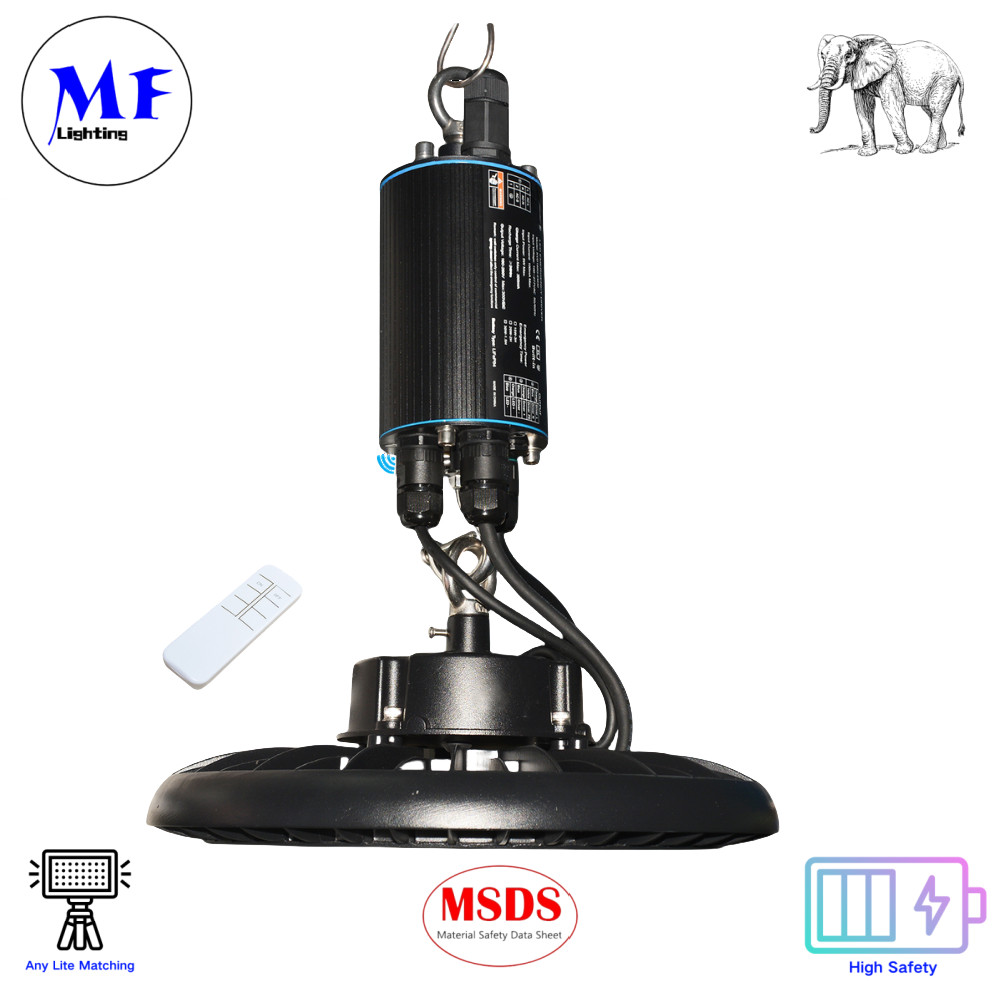

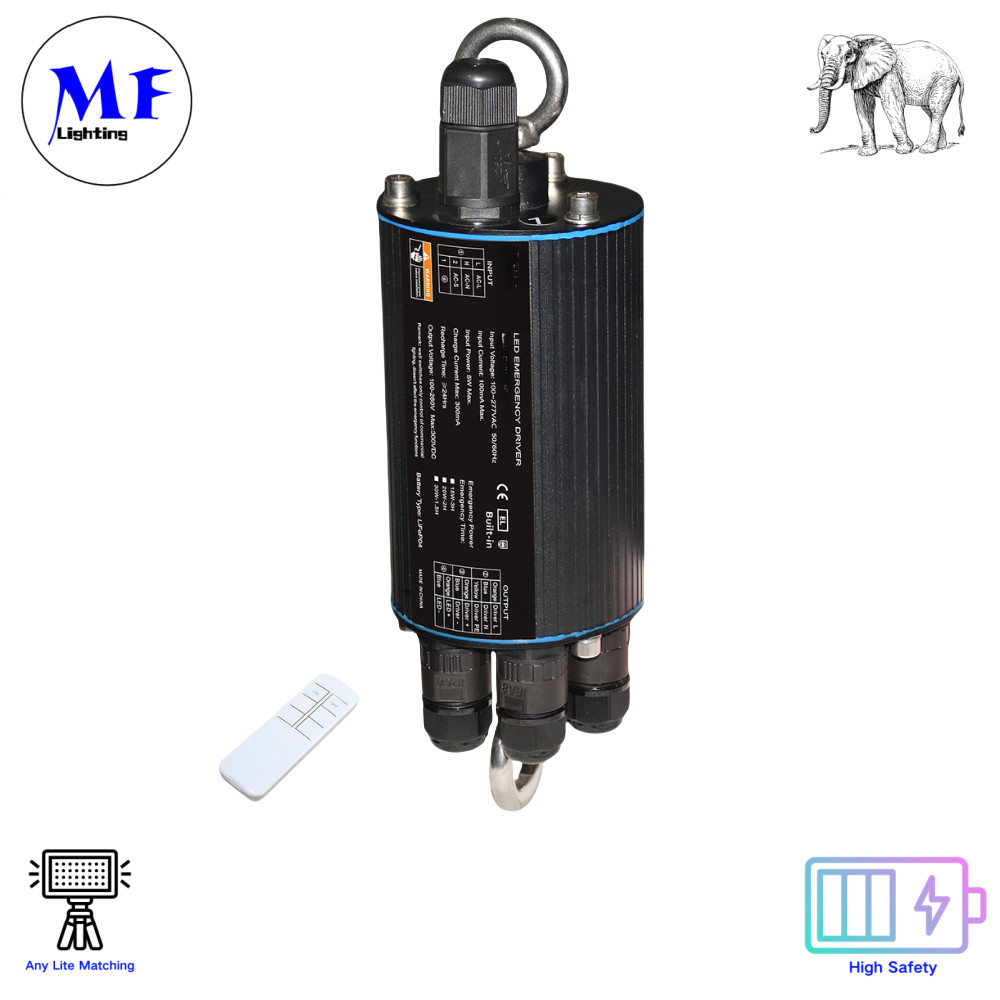

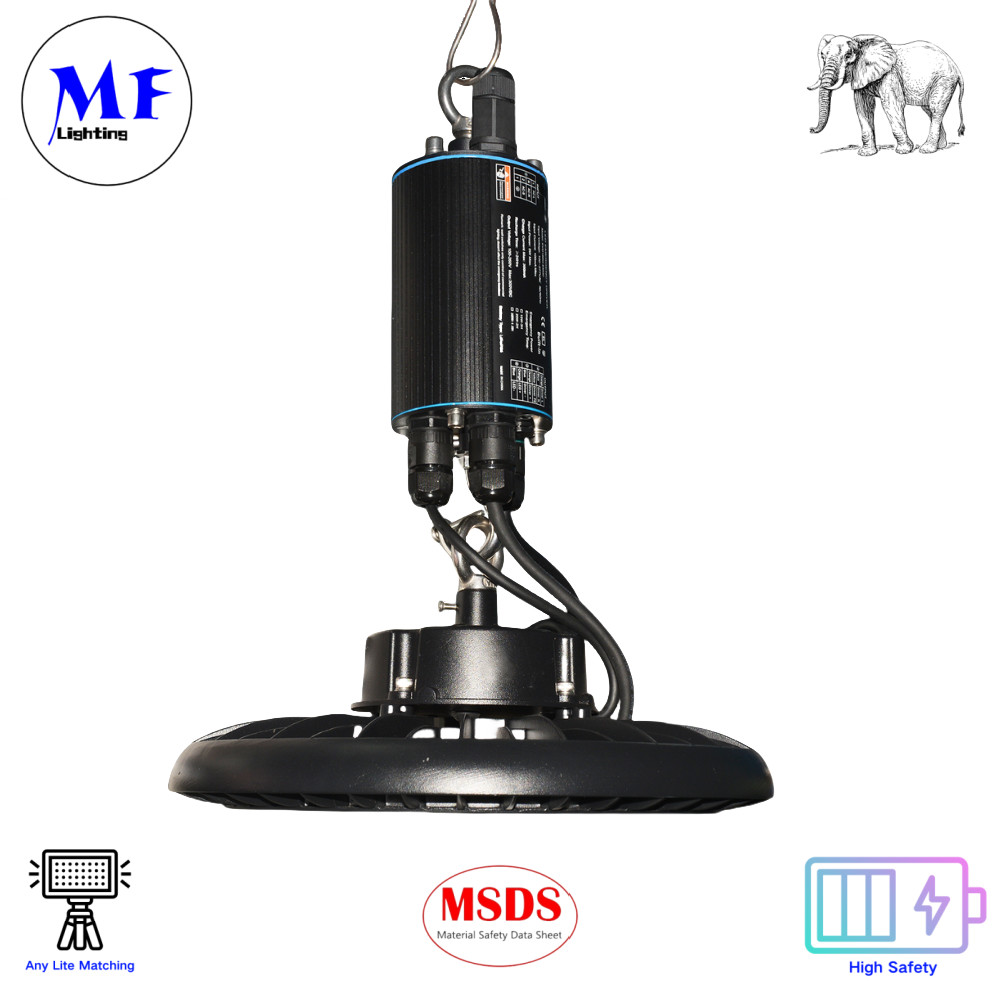

IP65 Ballast Power Supply Kit Emergency Light Driver LED Emergency Converter with 3 Years Warranty 3 Hours Discharge Time Li-FEP04

opis produktu

Product Description



Factory Price IP65 Ballast Power Supply Kit Emergency Light Driver LED Emergency Converter with 3 Years Warranty 3 Hours Discharge Time Li-Fep04





Product Parameters

Input voltage	100-277 Vac 50/60Hz
Input current	0.003A Max.@230Vac
Input wattage	<5.0W
Power factor	≥0.5@230 Vac
Battery charging current	0-350mA Max.
Battery charging time	≤24h Max
Emergency output Voltage	DC100-260V,DC300V Max
Storage Temperature	-20-40ºC
Emergency output Current:	58-150mA/ 75-200mA/115-300mA
Emergency power:	30W/20W/15W
Battery capacity:	LiFeP04/32700/6000mAh-9.6V
Case temperature:	tc 75ºC Max.
IP	IP65
Warranty	3 Years
Electric Strength	3000Vac 5mA (input to output)

Product Features

MF LED Emergency Driver is designed for LED fixtures, integrating a built-in battery for reliable emergency power. It features a self-diagnostic function and constant-power emergency output to ensure stable illumination during outages. Equipped with multi-protection technology-including battery overcharge/over-discharge protection, output overload protection, and short-circuit protection-it safeguards both the driver and connected devices. A user-friendly test switch and LED indicator simplify maintenance, while its 0uA static current at the battery terminal during power outages ensures minimal energy loss. Ideal for seamless integration into commercial and residential lighting systems, the MF driver balances safety, efficiency, and ease of use.
LED Emergency driver, Panic light ballast,panic emergency powerpack,emergency backup ballast,emergency ballast interter,emergency light kit,Led Emergency Battery Pack,Emergency Converter for triproof light down light ceiling light highbay light panel light

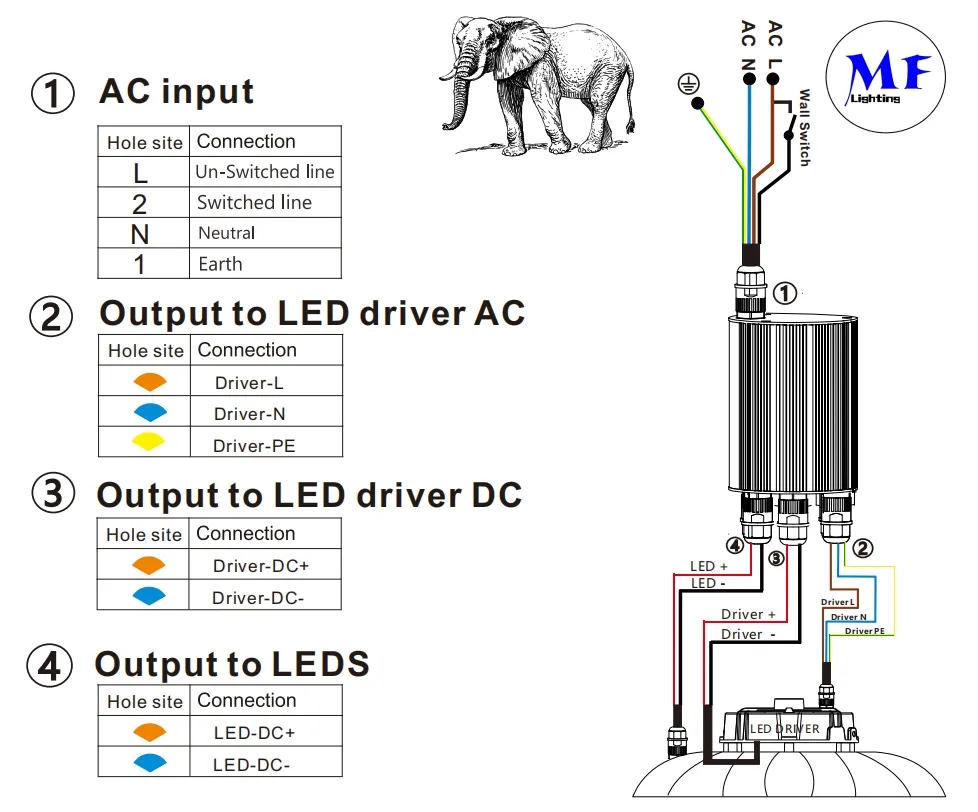

Wiring Diagram

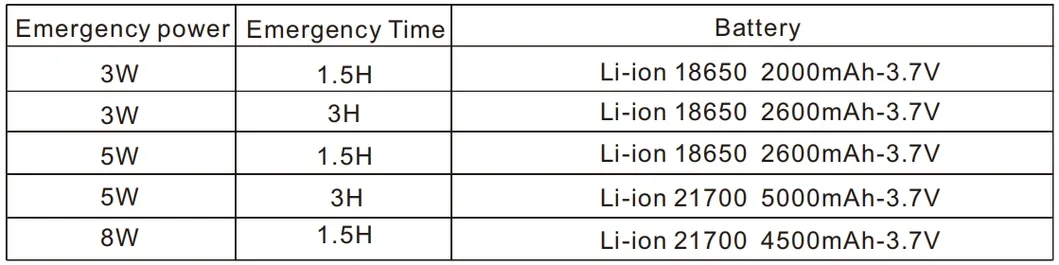

Ordering Information

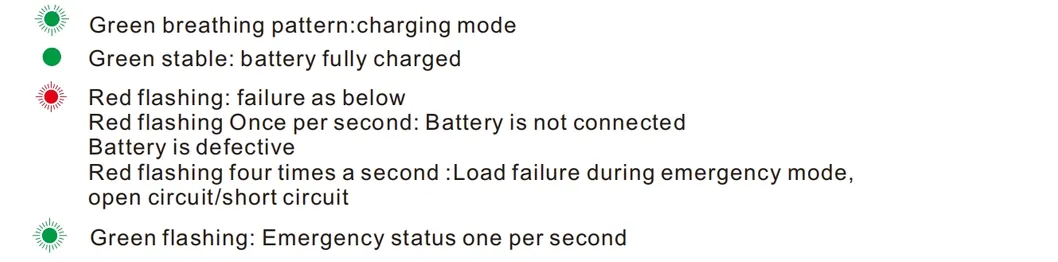

LED Indicator
Test Button
1:0S < Key ON ≤1S,Enter a simulated state of emergency,the green indicator blinks once every second
2:0S < Key OFF ≤1S,In simulated emergency situations, return to the normal charging state
3:0S < Key OFF≤ 1S,In the emergency state, the emergency state is turned off.
Quarterly self-test
when emergency driver is on power,every 180 days± 1 day
automatically enter the emergency state,emergency duration
until the battery is discharged,then return to power-on status.

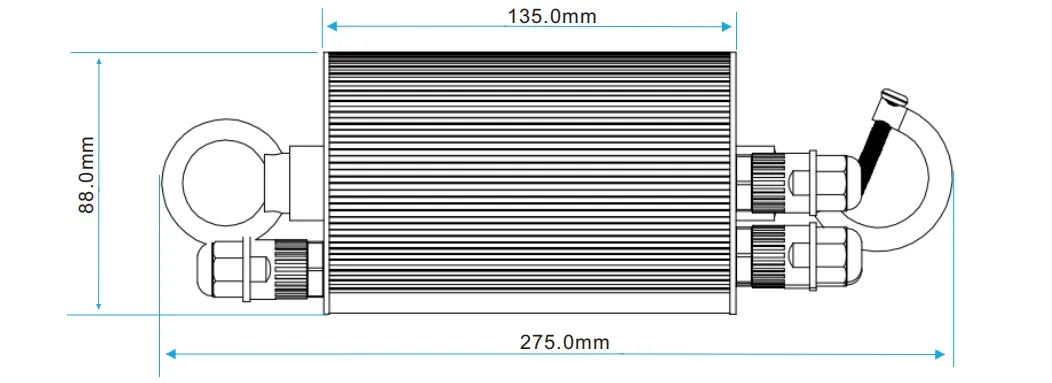

Product Dimensions

Product Installation

1. If it is used for the first time or it does not enter the normal working state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided.
2. When installing and using it, please keep it away from heat sources and only use it within a certain working temperature range.
3. It should be stored in a cool, dry environment.
4. After prolonged storage, recharge at least once every 6 months as needed.
5. Emergency driver testing must be longer than 1 minute, and don't press the testing button frequently.



Product Applications

1. Offices: Ensures emergency lighting activation during power outages to maintain illumination in workspaces, corridors, and exits while complying with safety standards.
2. Exhibition Halls & Museums: Powers emergency lighting with <1-second switchover to backup power for critical areas, protecting exhibits and preventing risks from darkness.

3. Hotels & Hospitality: Integrates with fire systems to activate evacuation lighting in public areas and maintain safety lighting in guest rooms during outages.
4. Villas & Residences: Supports smart home emergency lighting by maintaining illumination in key areas (stairs, entrances) during outages and monitoring battery status via apps.
5. Clubs & Entertainment Venues: Enables quick emergency lighting activation in high-energy spaces, prioritizing safe evacuation routes and working with dynamic lighting systems for event safety.

6. Retail & Commercial Spaces: Maintains basic lighting for product displays during outages and links with fire sensors to activate full emergency mode for safe customer evacuation.
7. Transportation & Public Hubs: Meets strict fire safety standards (CE, UL) with 72+ hours backup power for exits and corridors in airports, subways, and other critical infrastructure.

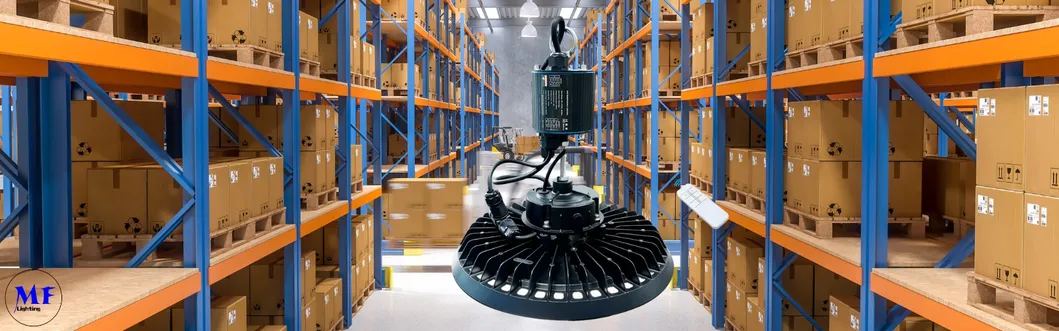

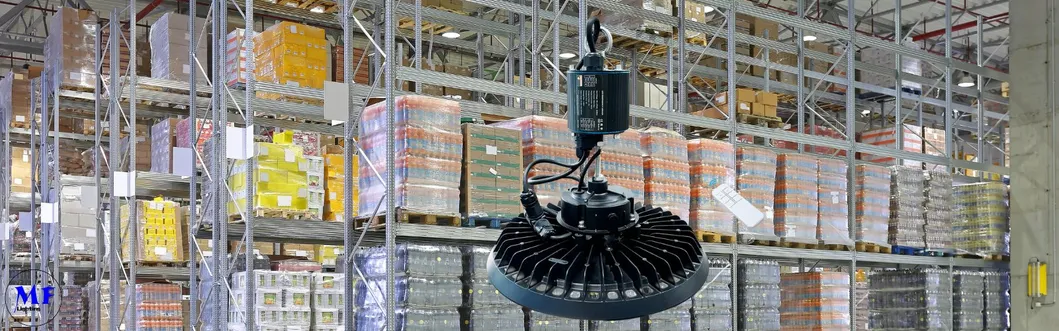

8. Industrial & Warehouses: Provides stable emergency power for high-power LED fixtures with wide voltage input (90-264V), ensuring reliable activation in harsh industrial environments.
