LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light

Skontaktuj się teraz

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light

Minimalne zamówienie :	1 PCS	Cena :	USD
Szczegóły pakowania :	Karton	Czas dostawy :	5-8 dni roboczych
Zasady płatności :	L/C, T/T, D/A, D/P, Western Union, MoneyGram	Możliwość Supply :	10000 sztuk/miesiąc

Miejsce pochodzenia:	Chiny	Nazwa handlowa:	MF
Orzecznictwo:	CE, RoHS	Numer modelu:	MF-EMUFO-XXW-170

Szczegóły informacji
Uniwersalne napięcie wejściowe:	100-277VAC/347VAC 50/60 Hz	Prąd wejściowy AC:	200 Mamax
Moc wejściowa:	maks. 12 W	Napięcie wyjściowe:	170
Zasilanie awaryjne:	25 W/30W/40W	Czas ładowania:	24 godz
Czas rozładowania:	90 minut	Akumulator:	Li-ion
Temperatura otoczenia:	32 ~ 122F (0 ~ 50 ° C)	Waga:	5,10 funtów (2,2 kg)
Podkreślić:	Triproof Light LED Emergency Driver , IP66 LED Emergency Driver , Ballast LED Emergency Driver

opis produktu

High Bay Light LiFePO4 Battery Back Up IP65 15W-3H/20W-2H/30W-1.5H Discharge Time Self-detect LED Emergency Driver Power Supply Emergency Conversion Kit

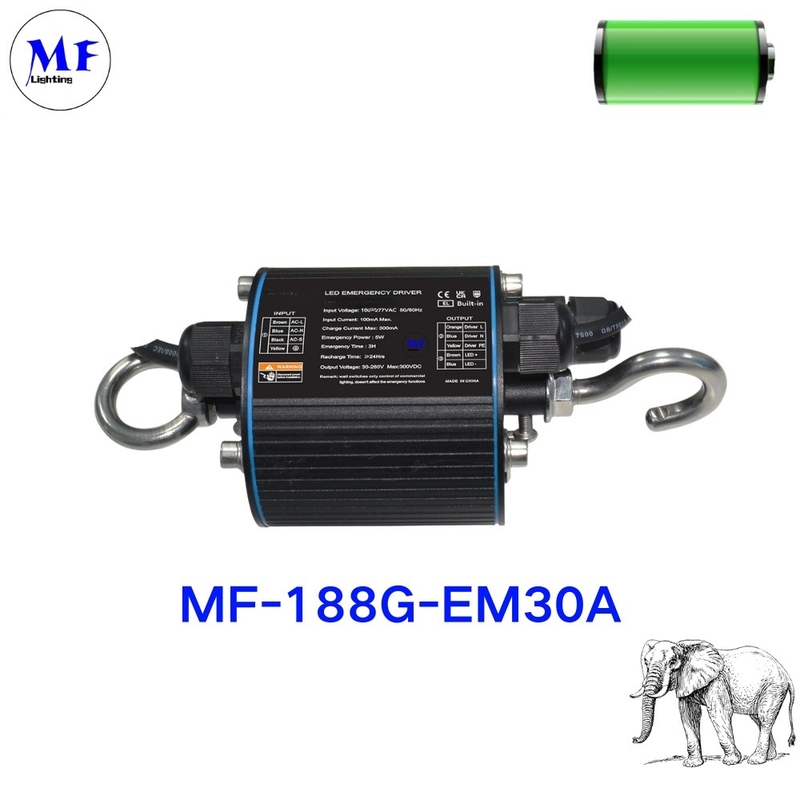

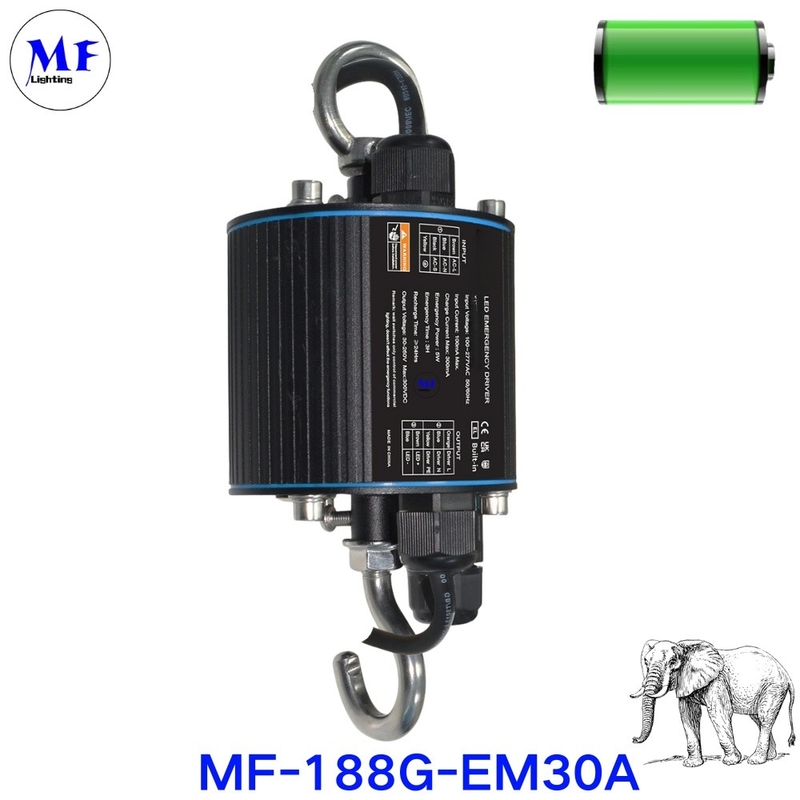

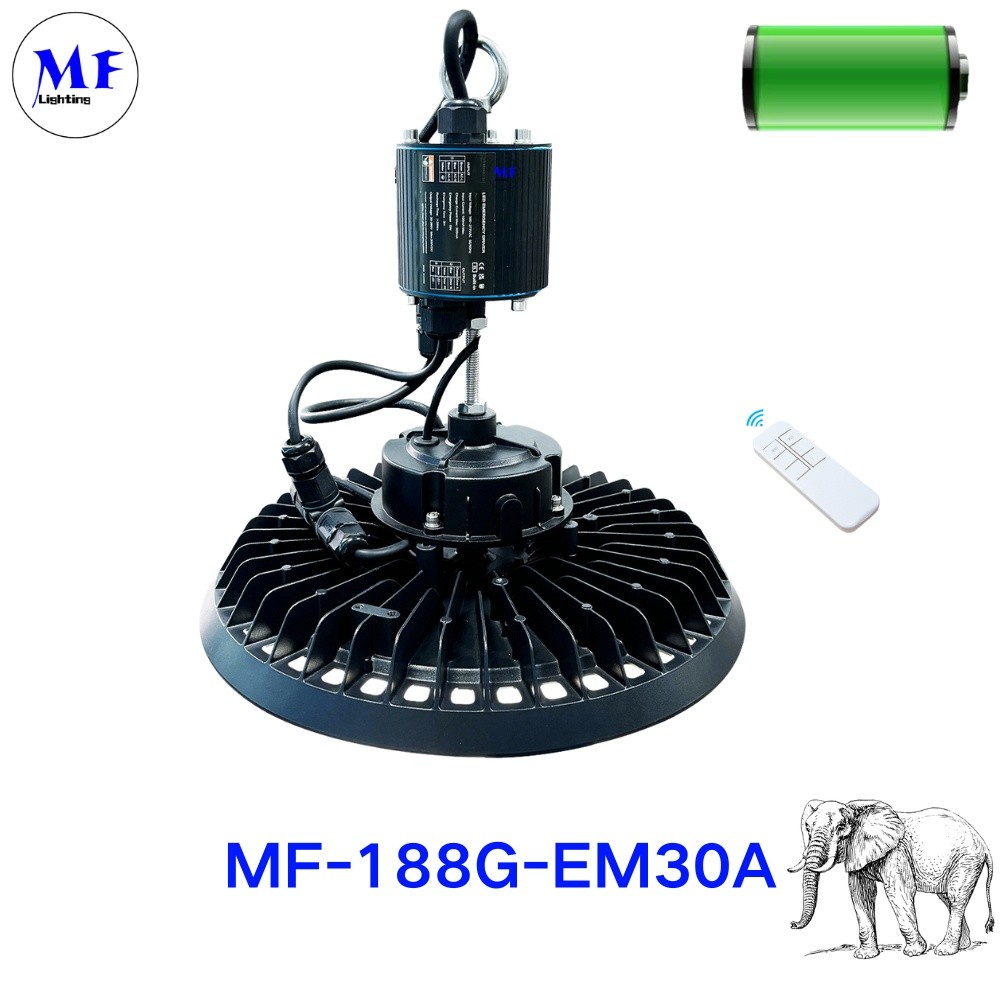

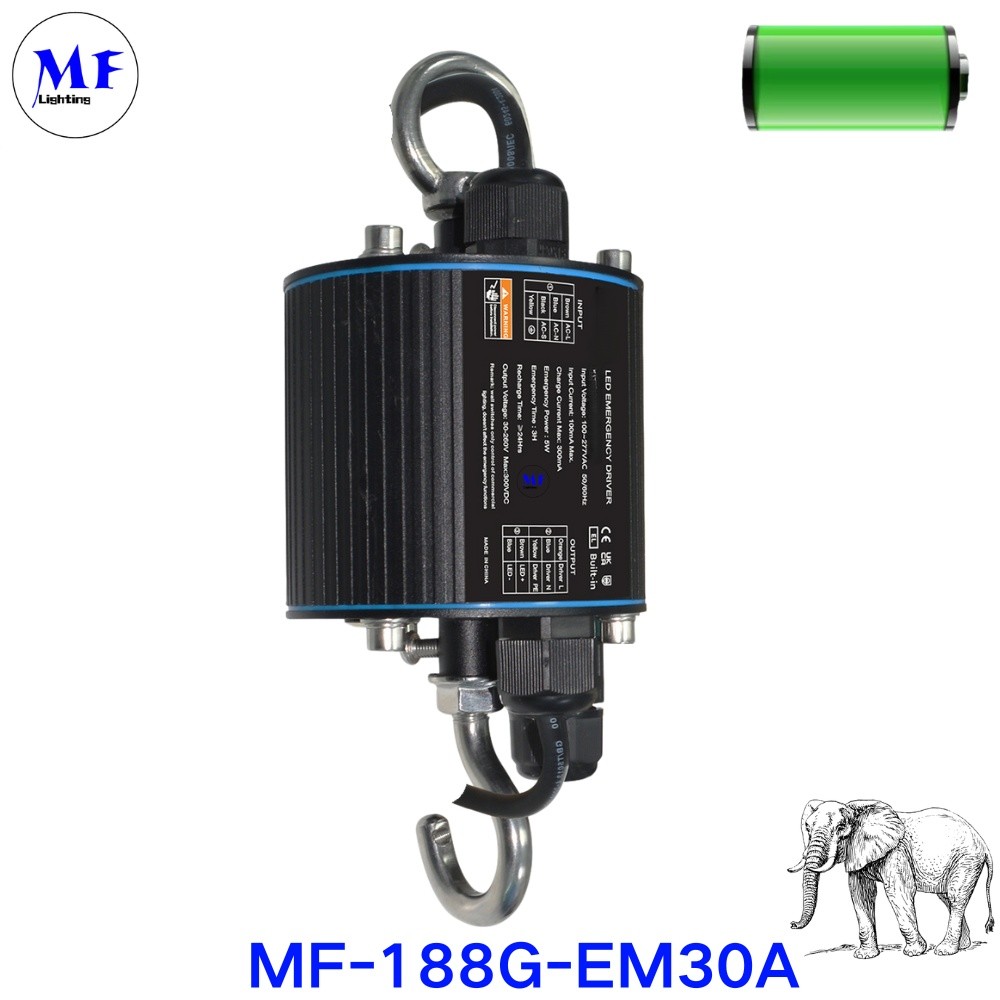

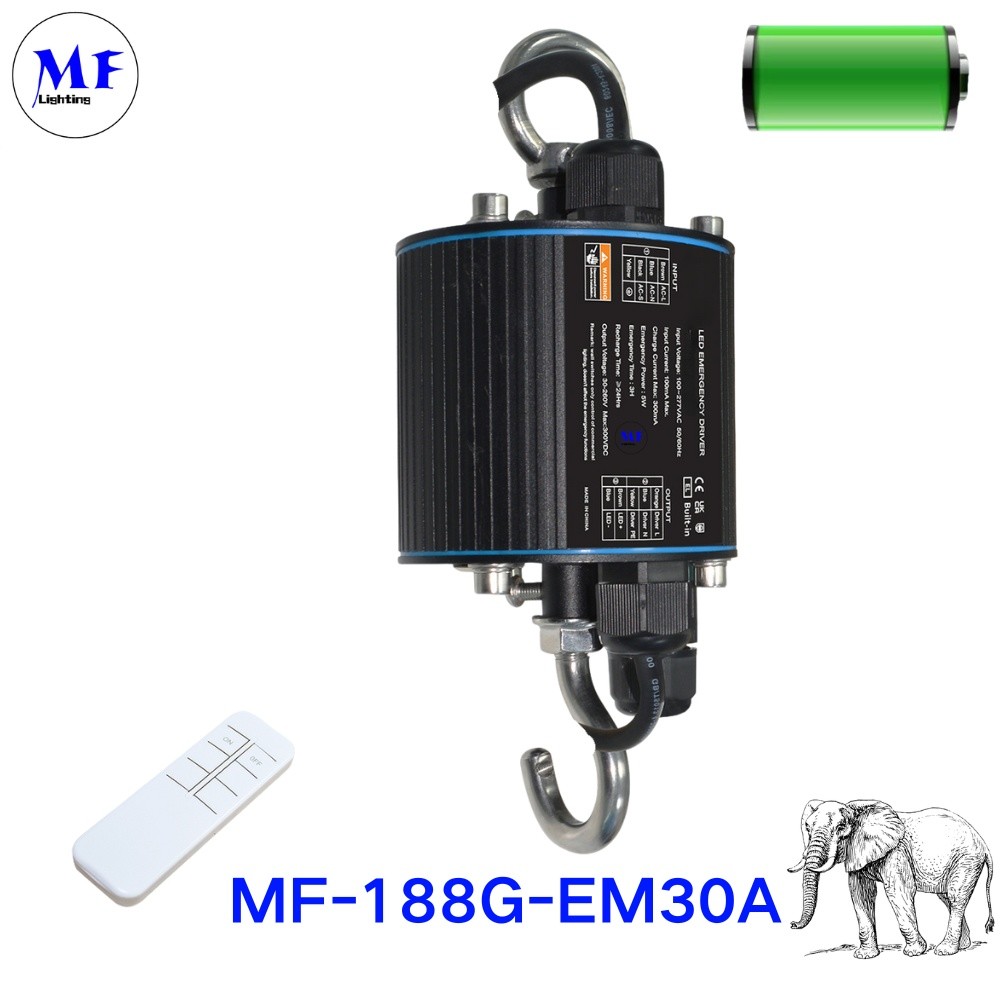

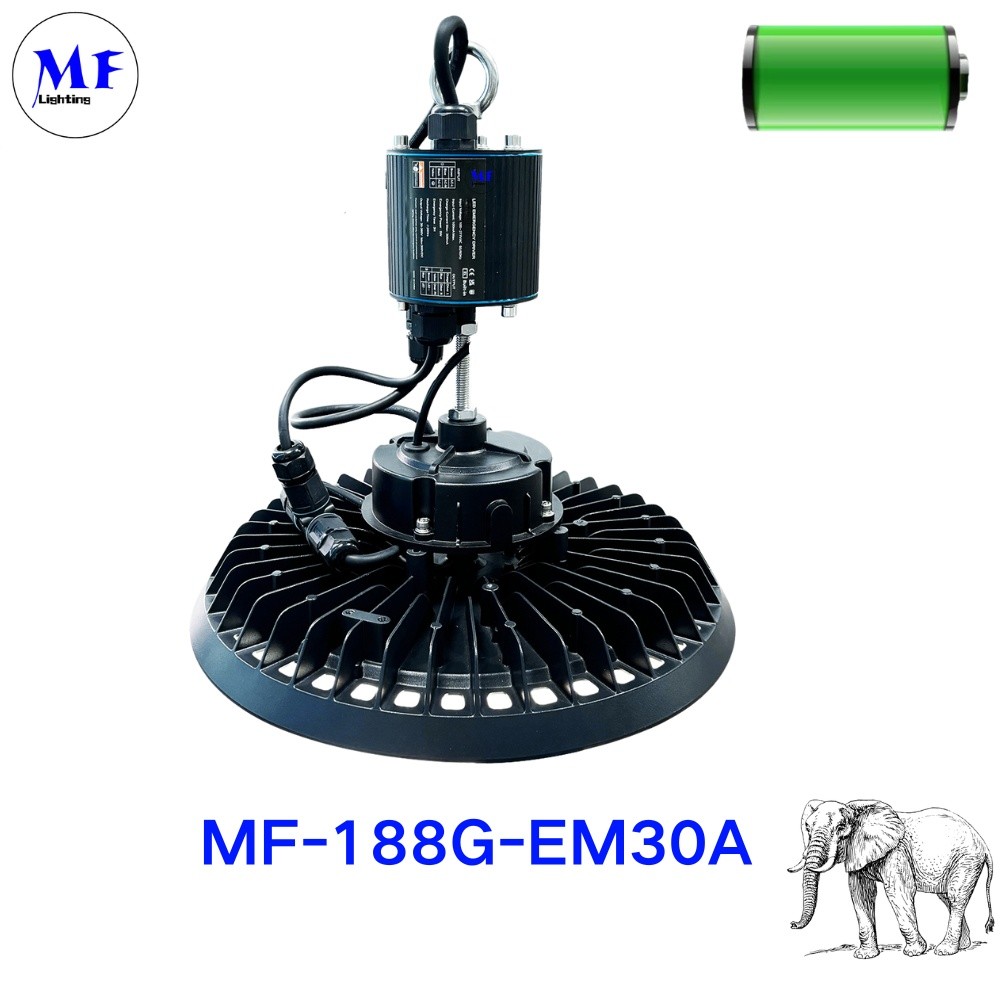

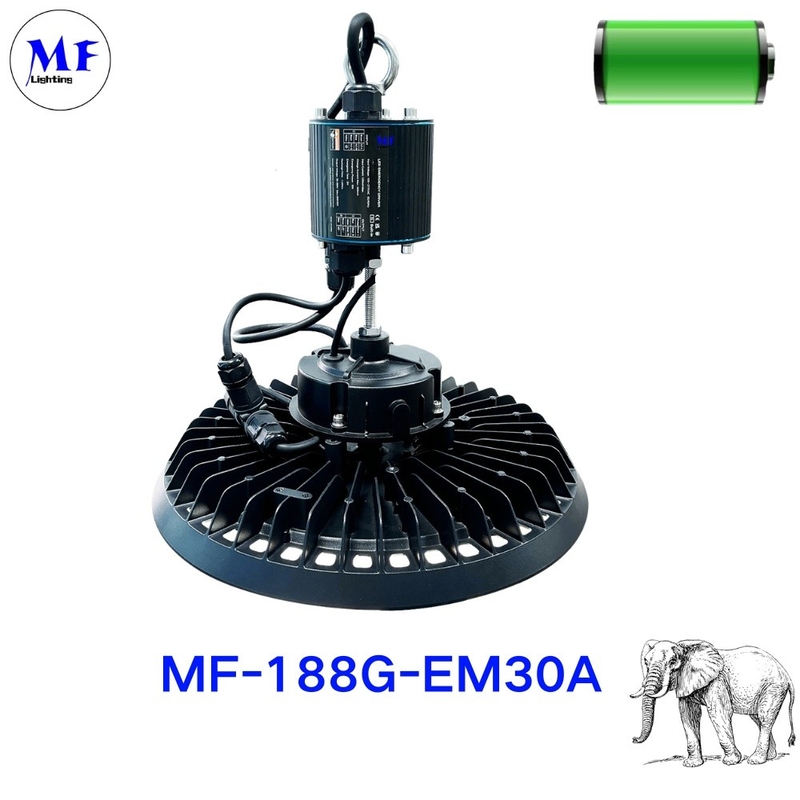

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 0

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 1

descriptions:

self-detect
constant power emergency output
apply to constant current driver external lighting products
LiFePO4 using together
battery: over-charge/discharge protection and short circuit protection
working environment: temp.: 0 to 60°C
IP65 standard
not suitable for high risk lighting environment
Accessories: integrated waterproof button and indicator light, remote control
3years warranty

Input voltage	220-240Vac, 50/60Hz
Input current	0.003A Max. @230Vac
Charging power:	5.0W max.
Power factor	>0.5
Emergency output Voltage	DC100-260V,DC300V Max.
Emergency output Current:	58-150mA/ 75-200mA/115-300mA
Case temperature	to 60ºC Max.
IP Rating	IP 65
Warranty	3 Years
Battery Data	Li-ion 2.6Ah 7.4V
Discharging time&Power	5W 3H

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 2

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 5

LED indicator:
Green breathing pattern: charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second: Load failure during emergency mode, open circuit/short circuit
Green flashing: Emergency status one per second

Remote control:
1: 0S < Key ON ≤1S, Enter a simulated state of emergency, the green indicator blinks once every second
2: 0S < Key OFF ≤1S, In simulated emergency situations, return to the normal charging state
3: 0S < Key OFF ≤1S, In the emergency state, the emergency state is turned off.

Self-test:
When emergency driver is on power, every 180 days ±1 day automatically enter the emergency state, emergency duration until the battery is discharged, then return to power-on status

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 6

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 8

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 9

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 11

Application:
school,hospital,subway,train station,shoppingmall,supermarket,airport,office, factory,hotel,basement,parking lot,public place

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 12
