AC100-240v Led Track Lights CRI90 Natural White 35w Led Track Spotlights

Minimum Order Quantity : 100PCS Cena : Negotiable
Packaging Details : 60.5X40.5X28.0cm/10PCS/CTN, N.W: 12.5KG, G.W: 15.5KG Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Nazwa handlowa: MF
Orzecznictwo: CE, RoHS Model Number: MF-035-AW-NW-02

Szczegóły informacji

Power: 35W Housing color: Matt Black, matt white,
Rail: 3 and 4 wire CCT: 3000K/4000K/5000K
Voltage: 100-240Vac Lamp Luminous Flux(lm): 3100LM
CRI: 90 Beam Angle: 36 Degree
LED Chip: Citizen Warranty: 3 Years
High Light:

led track spotlights

,

led tracking lights

opis produktu

AC100-240v Led Track Lights CRI90 Natural White 35w Led Track Spotlights



 Description:



Ming Feng Lighting Co.,ltd Kasa 35W LED track lights is specially designed to replace 50W metal halide track light, delivering over 7500cd , in the centre with beam angle of 36 degree at 3000k CRI80, this outstanding light output thanks to the patent optic and fatanstic heat sink design. The light source is CITIZEN COB, CRI 80 and CRI 90 are both available. Whole fixture is treated in matt white, black color is an option upon request.
   Our this track light available for superstore, school, factory, underground parking, passageway, hospictal, official large building and so on public place lighting.



Specifications:


Model No

MF-035-AW-W-02

Input voltage

100-240Vac  50hz/60hz

Power(watt)

35W

Luminous Efficiency

 85LM/W

Color temperature

Warm White(3000K), Pure White(4000K), Cold White(5000K)

LED Chip

CITIZEN COB

Material

Aluminum Alloy

Luminous Flux (lm)

3100LM at 5000K

CRI(Ra)

≥90

Lifespan

≥40000hrs

Beam Angle

36°

Packing

60.5X40.5X28.0cm/10PCS  N.W: 12.5KG, G.W: 15.5KG

OperatingTemperature

-20°C ~40°C

Adjustable  Angle

180°/355 °

IP

20

Dimmalbe

YES

Certificate

CE/RoHS

Warranty Period

3 years



Features:



1. Light source: Original  CITIZEN COB, >100lm/W.

2. Available in CRI 90+.

3. Unique reflector, 36° beam angle.

4. Can be rotated by 355D in horizontal direction,180D in vertical direction.

5. SDCM<3, deliverying overr 10000cd at the centre.

6. Both 3-phase track adaptor and 4 phase track adaptor available.

7.  Power factor: >0.90.

8. Housing color: Matt Black, matt white.

9. Non-dimmable version voltage: AC100-240V.

10. Dimmable version voltage : AC220-240V or AC100-120V.

11. Housing material: aluminum alloy

12. Working environment temperature: -20oc ~ +45oc.





35W led track lights dimension:



AC100-240v Led Track Lights CRI90 Natural White 35w Led Track Spotlights 0

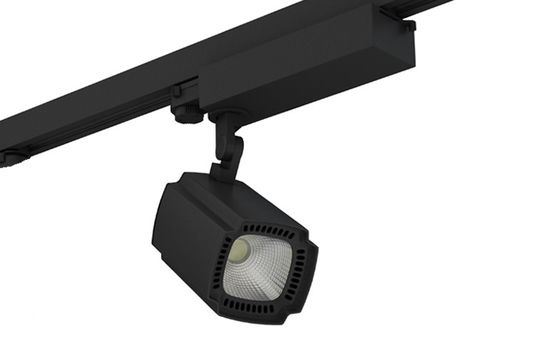

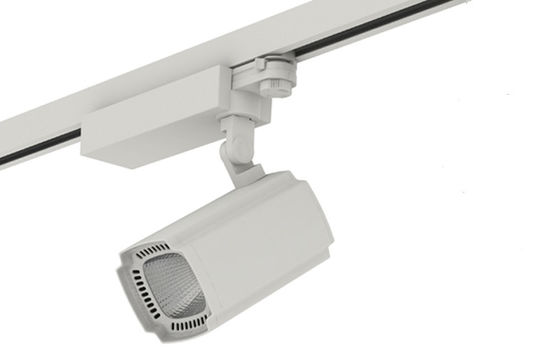

  Photos of LED Track Lights:

AC100-240v Led Track Lights CRI90 Natural White 35w Led Track Spotlights 1

AC100-240v Led Track Lights CRI90 Natural White 35w Led Track Spotlights 2



AC100-240v Led Track Lights CRI90 Natural White 35w Led Track Spotlights 3





 Installation requirement :



1. Power off before installation,

2. Dial the switch of track head to " OFF"

3. Hold the lamp and put  the track head into track, pls notice that the track must bein place, then dial the switch to " ON".

4. Adjust thelamp angle to proper position, to ensure that the distance between the light emitting surface and the radiationis greater than 0.8 meters.

5. Switch on power supply.



Applications:

Emporium, superstore, school, factory, underground parking, passageway, hospictal, official large building and so on public place lighting.



AC100-240v Led Track Lights CRI90 Natural White 35w Led Track Spotlights 4
