Bridgelux 45mil Mini Outdoor Dimmable LED Downlights , 3V IP67 1W / 3W LED Spot Light

Minimum Order Quantity : 100PCS Cena : Negotiable
Packaging Details : 26*24*20cm/24pcs, G.W: 8KG Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 10,000pcs/Month
Place of Origin: China Nazwa handlowa: MF
Orzecznictwo: CE, RoHS Model Number: MF-3W3V

Szczegóły informacji

High Light:

led underground lights

,

outdoor led floor lights

opis produktu

Bridgelux 45mil Mini Outdoor Dimmable LED Downlights , 3V IP67 1W  / 3W LED Spot Light



Quick Detail:

  1. 1W / 3W  Mini Dimmable LED Down Light
  2. Input: 3-3.3V/350mA(1W),700mA(3W)
  3. Luminous Flux:95-240lm
  4. CRI: >80
  5. Beam Angle: 30°, 60°, 120°
  6. LED chip: Bridgelux 45mil
  7. IP: 67
  8. Dimmable: Yes



Description:

MingFeng lighting Co., Ltd, as a prominent China IP67 Mini Dimmable LED down light factory, devotes himself to providing high quality Mini Dimmable LED down lights for the replacement of traditional Buried Light in the Roads, Squares, Walkways, Gardens, Swimming pools, Bridges, and other outdoor venues...etc.
Ming Feng lighting co.,ltd IP67 led spot light with Long LED lifespan comes from scientific thermal management. Superior material, heat sink appearance design and the thermology application, not a single one of these can be dispensed with Ming Feng Lighting utilize distinctive highly thermal conductivity material, unique multi-surface and hole designing for heat sink making the air flow fast, which fully taking away the heat and keeping the junction temperature of LED chips very low.


Specifications:

Model No:

MF-3W3V

Input voltage

3-3.3V/350mA(1W),700mA(3W)

Power(watt)

1W / 3W

Dimension

D35*49mm

Color temperature

WW(2700-3000K) ,PW(4000-4500K) ,CW(5500-6500K), Red, Green, Blue

LED Chip

Bridgelux 45mil

PF

>0.92

Luminous Flux (lm)

95-240lm

CRI(Ra)

≥80

Lifespan

≥35000hrs

Beam Angle

30°,60°,120°

Material

Aluminum Alloy

Operating Temperature

-200C ~450C

Dimmable

Y

IP

67

Dimension Package

10×5.3×5.3cm/pcs

Carton Size 26×24×20cm/24pcs

Weight Package

8KG

Certificate

CE/RoHS

Warranty Period

3 years



Competitive Advantage:


  1. High output Bridgelux 45mil LED chips ,stable performance and patented product.
  2. Beam angle 30 degree / 60 degree / 120 degree options,
  3. The lamp body is small, flexible application.
  4. Choose white, red, blue, golden Light, Purple.
  5. IP67 degree of protection.
  6. 6063 pure aluminum as heatsink material, Excellent heat dissipation performance which brings the light real long life.
  7. High power factor>0.92.
  8. 3 years guarantee



Dimension:

Bridgelux 45mil Mini Outdoor Dimmable LED Downlights , 3V IP67 1W  / 3W LED Spot Light 0

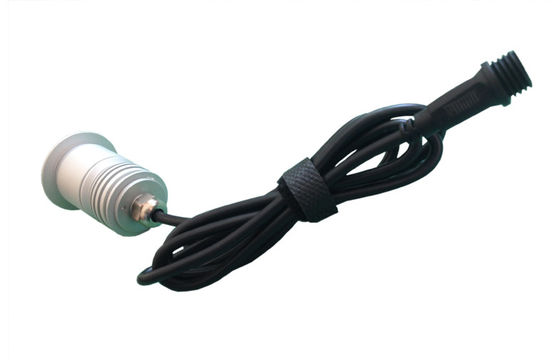

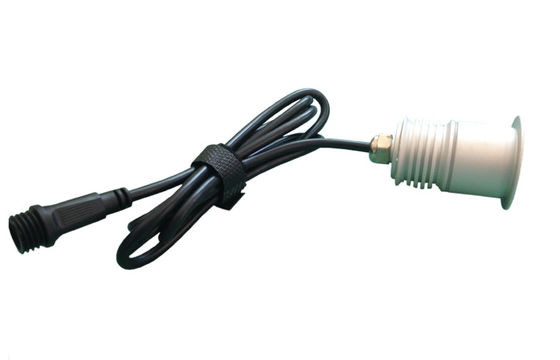

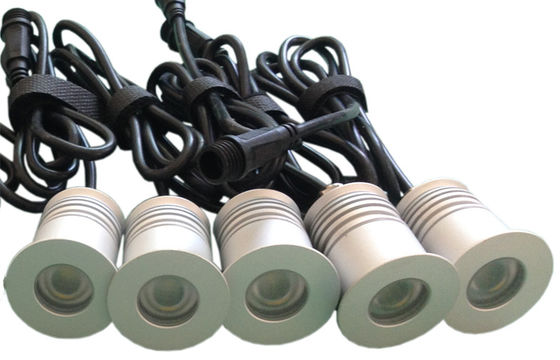

Product Picture:

Bridgelux 45mil Mini Outdoor Dimmable LED Downlights , 3V IP67 1W  / 3W LED Spot Light 1

Bridgelux 45mil Mini Outdoor Dimmable LED Downlights , 3V IP67 1W  / 3W LED Spot Light 2



Installation Diagram:

Bridgelux 45mil Mini Outdoor Dimmable LED Downlights , 3V IP67 1W  / 3W LED Spot Light 3

Packing:

Bridgelux 45mil Mini Outdoor Dimmable LED Downlights , 3V IP67 1W  / 3W LED Spot Light 4

Applications:


Widely used in Roads, Squares, Walkways, Gardens, Swimming pools, Bridges, and other outdoor venues... etc

Bridgelux 45mil Mini Outdoor Dimmable LED Downlights , 3V IP67 1W  / 3W LED Spot Light 5
