Aluminum OSRAM LED Track Lights CRI 90Ra 12 Watt Black / White

Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: MF
Orzecznictwo: CE, RoHS
Model Number: MF-I85C086
Zapłata:
Minimum Order Quantity: 100PCS
Cena: Negotiable
Packaging Details: 57X43.5X38.5cm/24PCS/CTN
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 20,000pcs/Month

Szczegóły informacji

Power: 12W Material: Aluminum
Housing color: Black, white, Light source: Original CREE COB LED, >120lm/W
Lamp Luminous Flux(lm: 1260lm Beam Angle: 15°/25°/40°/50°
High Light:

led track spotlights

,

led tracking lights

opis produktu

Aluminum OSRAM LED Track Lights CRI 90Ra 12 Watt Black / White






Quick Detail:





  1. 12W LED Track Light
  2. Input: AC 200V-240V, 50/60Hz
  3. Luminous Efficiency: 105LM/W
  4. CRI: ≧ 90
  5. PF: >0.90
  6. Lifespan: ≧40000Hrs
  7.  Beam Angle: 15°/25°/40°/50°
  8.  Body Color: Black/White



 Description:
Ming Feng Lighting Co.,Ltd 2015 new Italian exterior design 12W CRI 90Ra LED track lights with cold forging aluminium heat sink, better thermal dissipation, CREE(XPE-T) & OSRAM Chips optional, CRI 80 & 90. New lens
halogen light effect, narrow beam anle, 15°/25°/40°/50° . Available for superstore, school, factory, underground parking, passageway, hospictal, official large building and so on public place lighting.

Specifications:


Model No

MF-I85C086

Input voltage

200-240Vac  50hz/60hz

Power(watt)

12W

Luminous Efficiency

 105LM/W

Color temperature

Warm White(3000K), Pure White(4000K), Cold White(5000K)

LED Chip

CREE(XPE-2)/OSRAM

Material

Aluminum

Luminous Flux (lm)

1200±10%

CRI(Ra)

≥90

Lifespan

≥40000hrs

Beam Angle

15°/25°/40°/50°

Packing

Neutral / Customized

Operating Temperature

-20°C ~40°C

Adjustable  Angle

90°/355 °

IP

20

Dimmalbe

YES

Certificate

CE/RoHS

Warranty Period

3 years



Features:



1. Light source: Original  OSRAM LED, >100lm/W.

 2. Available in CRI 90+ or 80+

 3. Unique reflector, 15°/25°/40°/50° beam angle.

 4. Dimming methods: Triac, DALI, 0-10V.

 5. Can be rotated by 355D in horizontal direction,90D in vertical direction.

 6. Can be with Honeycomb to protect human’s eyes.

 7. With 3-phase track adaptor or single phase track adaptor.

  8. Customer can change the beam angle reflector easily without any tool.

 9.  Power factor: >0.90.

10. Housing color: Black, white.

11. Non-dimmable version voltage: AC100-240V.

12. Dimmable version voltage : AC220-240V or AC100-120V.

13. Housing material: aluminum.

14. Working environment temperature: -20oc ~ +45oc.





Dimension of led track lights:

 Aluminum OSRAM LED Track Lights CRI 90Ra 12 Watt Black / White 0


Photometric data of LED Track Lights :

Aluminum OSRAM LED Track Lights CRI 90Ra 12 Watt Black / White 1

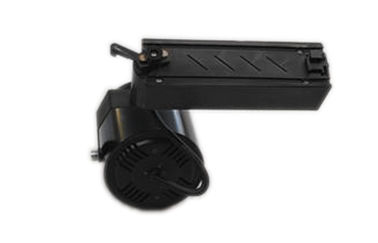

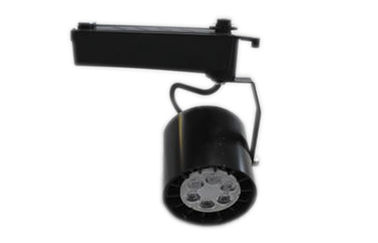

Photos of LED Track Lights:

Aluminum OSRAM LED Track Lights CRI 90Ra 12 Watt Black / White 2

Applications:

Emporium, superstore, school, factory, underground parking, passageway, hospictal, official large building and so on public place lighting.


Aluminum OSRAM LED Track Lights CRI 90Ra 12 Watt Black / White 3
